Indoor COB LED Video Wall
4K Ultra-thin Seamless Splicing LED Display Screen
GOB led screen 600x337.5mm led display
Cob Indoor Led Display Panel Advertising Screen
COB LED Screen Presentation:
COB Screen is a self-developed ultra-high-definition product targeting the fine-pitch LED display market. It is mainly used in various control fields such as security monitoring, command dispatch, video conferencing, and broadcasting for high-quality display applications.
The indoor LED display cabinet is made of die-cast aluminum alloy, which has the advantages of light weight, high precision, thin body, quick installation and easy maintenance. The product has high refresh rate, energy saving and low consumption, and low heat dissipation risk. It is widely used in indoor media advertising, stage performances, conference monitoring and other places.
PH0.93 Indoor COB LED display Parameters:
| MODEL | PH0.93 |
| Pixel Pitch (Resolution) | 0.93mm |
| LED configuration | COB |
| LED Type | COB 1R1G1B(Flip Chip) |
| Module size | 150x168.75mm |
| Panel size | 600x337.5x37mm |
| Pixel matrix per Module | 320*180 dots |
| Pixels Per Sq.Meter(Density) | 1137777(dots/sqm) |
| Material | Die Casting Aluminum |
| Maintenance Method | Front maintenance |
| Refresh Rate | 7680HZ |
| Color Depth | 14-16 bit |
| Brightness | 600-800nits |
| Ingress Protection | IP63 |
| Optimal Horizontal Viewing Angle | 170° |
| Optimal Vertical Viewing Angle | 170° |
| Input Voltage | AC100-240V±10%,50Hz/60Hz |
| Working Temperature | -40 -50(℃) |
| Operating Humidity | 10%~95% non-condensing |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥100000(Hours) |
COB LED display advantage:
- 600*337.5*32mm standard size design, 16:9 golden ratio easily achieves ultra-high-definition resolutions such as 2K/4K/8K;
- The cabinet is made of die-cast aluminum, 4.2kg per box, 21kg/㎡ for the whole screen, ultra-light and thin design, high strength, strong toughness and high precision;
- Automatic module detection, no configuration, no debugging; realize fast installation and maintenance of the screen, front maintenance of the cabinet, and the module hard link with magnetic suction to prevent falling;
- Quick and simple installation, support wall-mounted cabinet without steel structure, support wall-mounted and seated installation;
- Customizable dual power supply, dual system card, dual backup;
COB LED Display Features:

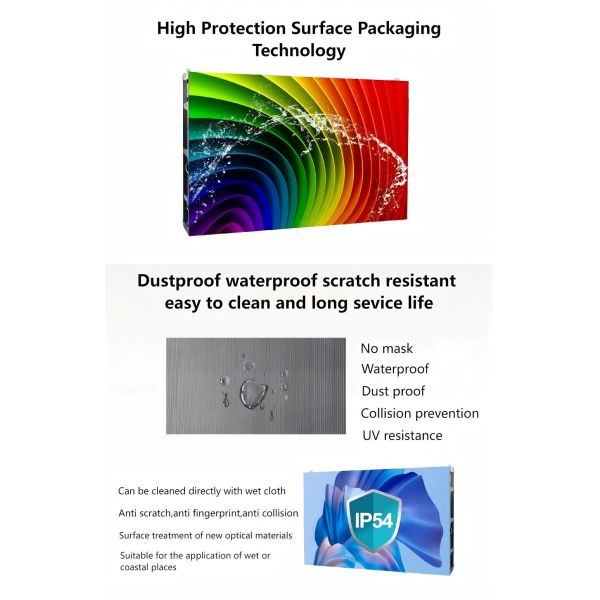

- Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
- Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
- Light Weight: The cabinet uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
- Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
- Easy Setup: Back modules are made easier for connection.
- Totally front service design. Saving space and maintenance cost.
- Efficient Heat Dissipation:High precision seamless splicing, silent and fanless design, die-cast aluminum body;
- Full flip-chip COB integrated packaging, high protection, high reliability, high environmental adaptability;
- Full front maintenance, featuring hot-swappable modules, and overall rigid connection.
Small-pitch LED display Applications:
Small-pitch LED indoor screens are widely used in high-definition video display and advertising in indoor places such as TV stations, theaters, shopping malls, exhibition halls, conference centers, stadiums, and airports. Small-pitch LED screens are widely used in various places that require high-definition, high-brightness, and high-contrast video display and advertising, such as:
- Shopping malls and exhibition halls: Small-pitch LED display screens can be used to display brand advertisements, merchandise promotions, and product displays to attract customers' attention and increase brand awareness and sales.
- TV stations and theaters: Small-pitch LED screens can present high-definition, high-color reproduction and high-contrast video images, making them ideal for television broadcasts and movie screenings
- Conference centers and performance halls: Small-pitch full-color LED screens can be used for live performances and conference displays, supporting high-definition, high-contrast and high-brightness real-time video playback, bringing a better audio-visual experience to the audience.
- Stadiums and performing arts centers: LED small-pitch displays can be used for large-screen displays of live sports competitions and performing arts performances, supporting high-definition, high-contrast and high-brightness real-time video playback to enhance the scene atmosphere and audience participation.
- Airports and stations: Small-pitch LED display screens can be used to display flight information, train schedules, advertising, etc., providing real-time information and convenient services
